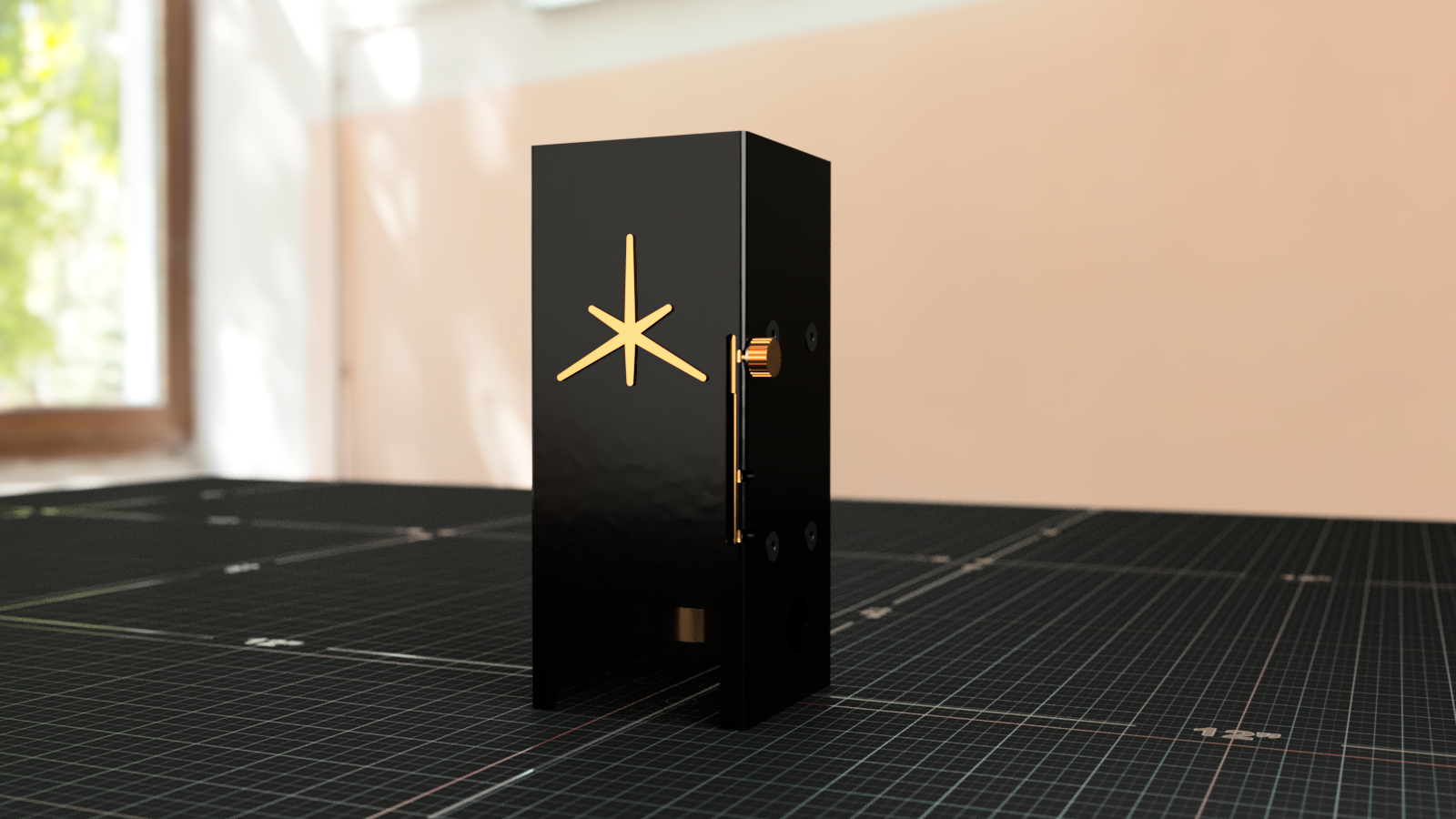

Laser Ryder: 10W, 20W & 40W Module
Upgrade Your CNC With A High Quality Laser
Plug-and-play mounts, standard PWM/TTL control, and step-by-step guides for the most popular hobby CNCs.
Made to Fit Your CNC, No Guesswork.
Upgrade Your CNC Machines with a Percision Laser. Make more, install in minutes, all backed by North American support.
Mounts for Popular CNCs
Onefinity, LongMill, AltMill, Shapeoko, X-Carve, OpenBuilds, WorkBee, Shark, and more.
Universal Signal Input
Works with common 5V/12V PWM/TTL laser control or spindle-PWM output; includes adapter harnesses where needed.
Air-Assist Capable
Integrated air-assist input for clean cuts and crisp engravings.
Set up Guides & Support
Clear wiring, LightBurn profiles, and first-cut projects. Book a support call if you need help.
Join Our Email List & Receive a 15% Discount Code!
Compare The Laser Ryder Series
Choose the laser power that matches your materials, speed, and budget needs. Each Laser Ryder adds quality engraving and cutting to your existing CNC.
LR-10W
- Price: $500 CAD || $375 USD
- Output Laser Power: 10W
- Laser Wavelength: 455±5 nm
- Input Power: 24V 1.6A
- Laser Power Supply: 24V 8A
- Focus Spot Size: 0.005 mm (5 µm)
- Focal Length: Adjustable
- Laser Control Signal: 5V/12V PWM/TTL
- Signal Connector: Universal Screw Terminal Connector
- Laser Driver: Integrated
- Air Assist Capable: Yes
- Air Assist Input Tube Diameter: 6–4 mm (PU Tube)
- Cooling Fan Speed: 10,600 RPM
LR-20W
- Price: $800 CAD || $600 USD
- Output Laser Power: 20W
- Laser Wavelength: 455±5 nm
- Input Power: 24V 3.3A
- Laser Power Supply: 24V 8A
- Focus Spot Size: 0.005 mm (5 µm)
- Focal Length: Adjustable
- Laser Control Signal: 5V/12V PWM/TTL
- Signal Connector: Universal Screw Terminal Connector
- Laser Driver: Integrated
- Air Assist Capable: Yes
- Air Assist Input Tube Diameter: 6–4 mm (PU Tube)
- Cooling Fan Speed: 10,600 RPM
LR-40W
- Price: $1200 CAD || $900 USD
- Output Laser Power: 40W
- Laser Wavelength: 455±5 nm
- Input Power: 24V 6A
- Laser Power Supply: 24V 8A
- Focus Spot Size: 0.005 mm (5 µm)
- Focal Length: Adjustable
- Laser Control Signal: 5V/12V PWM/TTL
- Signal Connector: Universal Screw Terminal Connector
- Laser Driver: Integrated
- Air Assist Capable: Yes
- Air Assist Input Tube Diameter: 6–4 mm (PU Tube)
- Cooling Fan Speed: 10,600 RPM
Create More
From intricate engravings to small business production, Upgrade your CNC with a Laser Ryder Module.
Personalized Cutting Boards
Event & Wedding Signage
Home Decor
Unique Marketing Material
FAQ
Will it work with my exact CNC?
Yes, if your controller can output a standard laser control signal (typically 5V PWM/TTL or a spindle-PWM/relay output), you’re good. We provide machine-specific brackets/wiring for popular models and a universal option for others.
Which machines are explicitly supported?
We cover crowd-favorites like AltMill, Shapeoko, X-Carve, Onefinity, LongMill, OpenBuilds LEAD, WorkBee, Shark, Avid, Stepcraft, Genmitsu, FoxAlien, and more—plus a universal kit.
What software do I use?
We recommend using LightBurn for laser jobs but Vectric’s Laser Module also works if you already have VCarve/Aspire. LaserGRBL is a free option for GRBL boards. We ship ready-to-import device profiles.
Do I need a separate power supply?
Laser diodes are powered separately from your CNC’s motion electronics. Our kit includes the laser PSU and safe, labeled connections so your controller only sends the control signal.
Is installation reversible?
Yep. The mount and harness are non-destructive. You can swap between router and laser in minutes while keeping your CNC’s normal workflows.
How powerful should I go? 10W vs 20W vs 40W
10W Laser Ryder: Sharp engraving, light cutting (thin woods, paper, cardstock, some leathers).
20W Laser Ryder: Versatile “do-most” setup; cuts common craft woods/acrylic in multiple passes with air-assist.
40W Laser Ryder: Faster cutting and thicker stock; best when you want production speed.
Real-woreld performance depends on wood species, color, air-assist, focus, and kerf settings—always test on your material.
Do I need air-assist?
Highly recommended for cleaner edges, less char, and deeper cuts. The Laser Ryder Module has an air assist intake directly on the nozzle, Our ARC Air assist pumps will work with this system
What about fumes and ventilation?
Vent smoke outdoors via hose or use a filtered enclosure and vent outside. Never operate without adequate ventilation.
How do I wire it to my controller?
Typically: PSU → laser head; controller’s laser/spindle-PWM → laser signal input.
We provide machine-specific pinouts for popular Hobby CNC boards.
If you need additional help, we will gladly hope on the phone and help you get set up.
Lead time & support?
Our goal is to begin shipping orders in October, with maker-grade documentation and North American human support. If your CNC isn’t listed, we’ll help you spec the right universal mount and wiring.
