[ brand identifier ] ARC Maker // co2 laser series

optical velocity.

industrial precision.

Engineered with customized linear rail structures, water-cooled CO2 laser engines, and standalone DSP logic boards. Built for rigorous production workloads.

→ configure your laser system
BETA Shipped (Oct - Dec 2025) // Production Pool Batch 01 Open
MODEL: ARC MAKER PLATFORM
TRANSMISSION: BELT DRIVE LINEAR SYSTEM
ACCELERATION: 1500 mm/s^2 TARGET

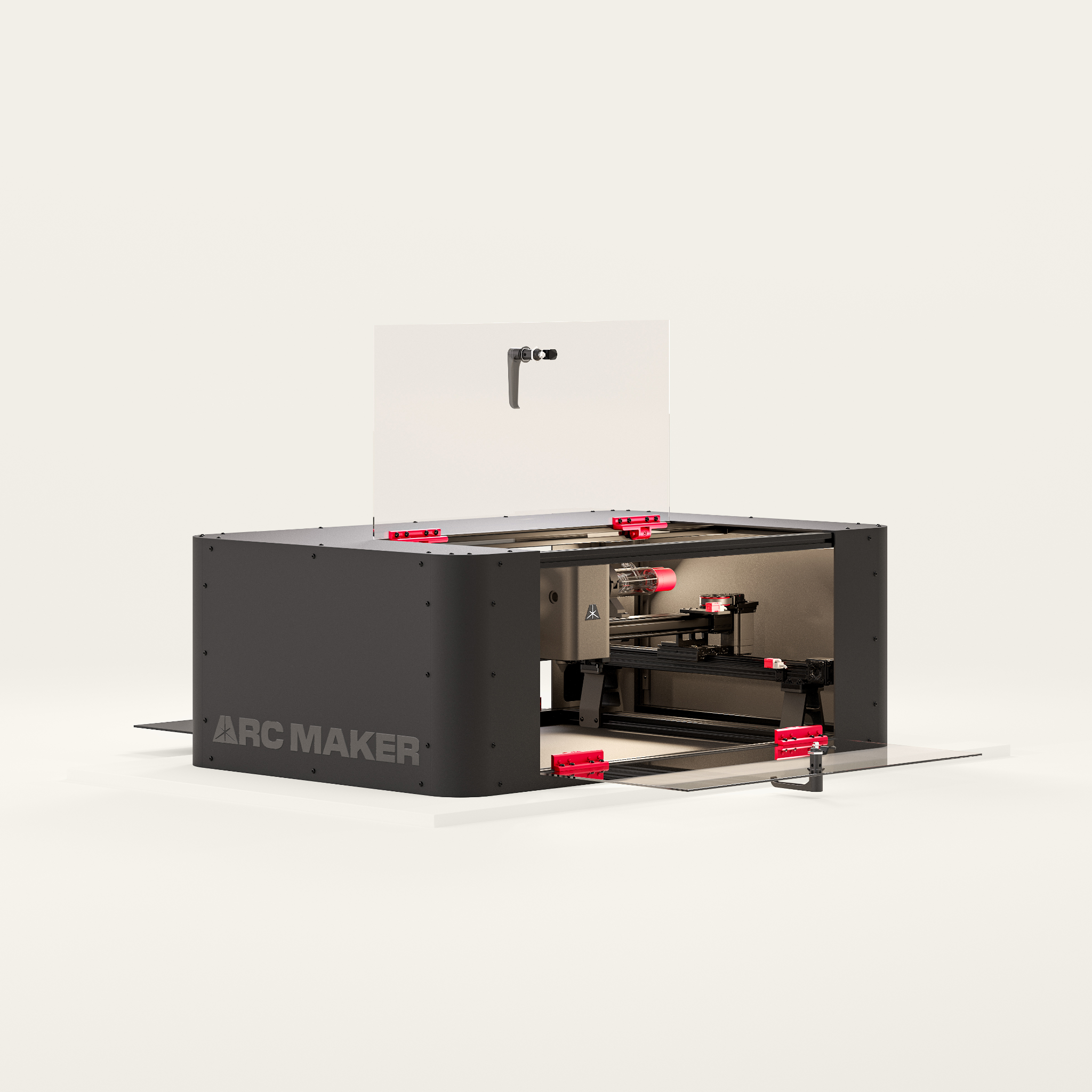

ARC Maker CO2 Laser Angled Open

system architecture.

[ modular_mesh ]
02.1 // sealed co2 power

stable glass co2 laser tube.

Equipped with high-performance gas discharge tubes operating at 10.6 micrometers. Highly concentrated infrared energy density produces instantaneous material sublimation with minimal heat-affected zones.

02.2 // profile kinetics

precision belt-driven linear modules.

Features hard chrome steel guide rods pressed into structural anodized aluminum frames. Driven by glass-fiber reinforced timing belts and medium-preload recirculating bearing carriages for high-speed repeatability.

02.3 // dsp controller

isolated control board.

Driven by the 32-bit standalone processing controller. Standalone program operation with 128MB non-volatile storage, 2.5kV opto-isolated logic safeguarding, and direct, multi-format hardware inputs.

compare system frameworks.

[ baseline_matrix ]
ARC Maker standard size render
Standard Platform // Desktop

ARC Maker

$6,000 USD / $8,500 CAD

Optimized for dynamic desktop engineering workshops, precision optical layouts, and fast high-detail engraving.

  • Laser Output Power45W Rated CO2
  • Active Cutting Envelope24 in x 18 in
  • Linear Guide SetupBelt-Driven Rail System
  • Z-Axis Vertical stroke60 mm Travel
  • Main Logic BoardRuida Standalone DSP
→ configure arc maker base
ARC Maker Pro extended size render
Production Platform // Full-Scale

ARC Maker Pro

$7,200 USD / $10,000 CAD

Heavy-duty gantry expansion built for sustained industrial output, raw sheet cutting, and advanced CAD/CAM deployment.

  • Laser Output Power80W High-Density CO2
  • Active Cutting Envelope36 in x 24 in
  • Linear Guide SetupBelt-Driven Rail Pro System
  • Z-Axis Vertical stroke60 mm Travel
  • Main Logic BoardRuida Standalone DSP
→ configure arc maker pro base
[ system_manifest_v2.0 ]

engineering specifications.

Laser Power
ARC Maker 45W Peak / Rated
ARC Maker Pro 80W Peak / Rated
Active Workspace
ARC Maker 24 in x 18 in (610 mm x 457 mm)
ARC Maker Pro 36 in x 24 in (915 mm x 610 mm)
Max Engraving Speed
ARC Maker 800 mm/s
ARC Maker Pro 1000 mm/s
Max Cutting Speed
ARC Maker 80 mm/s
ARC Maker Pro 120 mm/s
Verified Repeatability
ARC Maker +/- 0.02 mm (Under 0.0008 in)
ARC Maker Pro +/- 0.02 mm (Under 0.0008 in)
Z-Axis Usable Travel
ARC Maker 60 mm vertical travel
ARC Maker Pro 60 mm vertical travel
Z-Axis Transmission
ARC Maker TR8 Lead Screw Direct Drive
ARC Maker Pro TR8 Lead Screw Direct Drive
Homing & Calibration
ARC Maker Touch-probe auto focus, PL-05N limit sensors
ARC Maker Pro Touch-probe auto focus, PL-05N limit sensors
DSP Controller
ARC Maker Ruida RDC6445G-S (Standalone)
ARC Maker Pro Ruida RDC6445G-S (Standalone)
Software Compatibility
ARC Maker LightBurn, RDWorks, CorelDraw
ARC Maker Pro LightBurn, RDWorks, CorelDraw

project inspiration.

[ gallery_showcase ]
CNC cutting of charcuterie board cutting custom boards
Engraved motion brand logo sign precision brand signage
Laser engraved tree pattern coaster set organic geometric engraving
Card slot and product layout setup detailed batch card lots
ARC Maker Launch Pool Base System Starting at $6,000 USD BETA units successfully shipped Oct-Dec 2025. Pre-order batch 01 now open.
→ START SYSTEM CONFIGURATION
